Dettagli

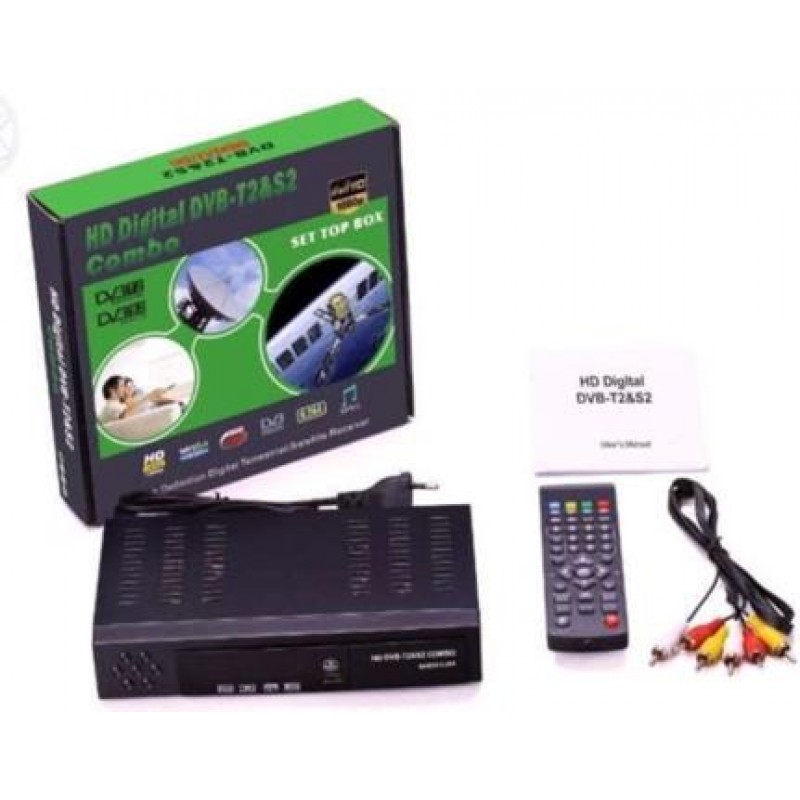

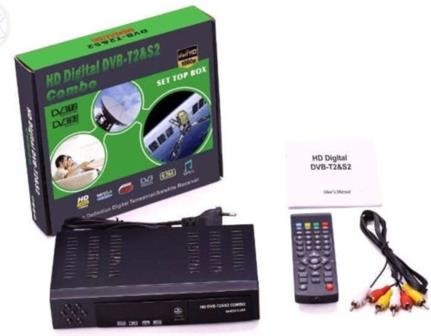

DECODER DIGITALE FULL HD COMBO DIGITALE TERRESTRE E SATELLITARE DVB-T2 & DVB-S2
Specifiche:
Modello DVB-T2+S2 COMBO
CPU Montage VT6000 (128 pin) MIPS 34Kf@600MHz
Memoria: 32X16Mbit DDR2 Frequency1066
Flash 32M bytes
Demodulatore Montage DM6000 Chip Set
S2+TUNER Montage TS2022 Chip Set
T2+TUNER MaxLinear MXL 608
Pannello frontale USB 2.0 Embedded One Host,
Scritta 4-digit LED
Pulsanti Panello KEY, POWER, CH+ ,CH-

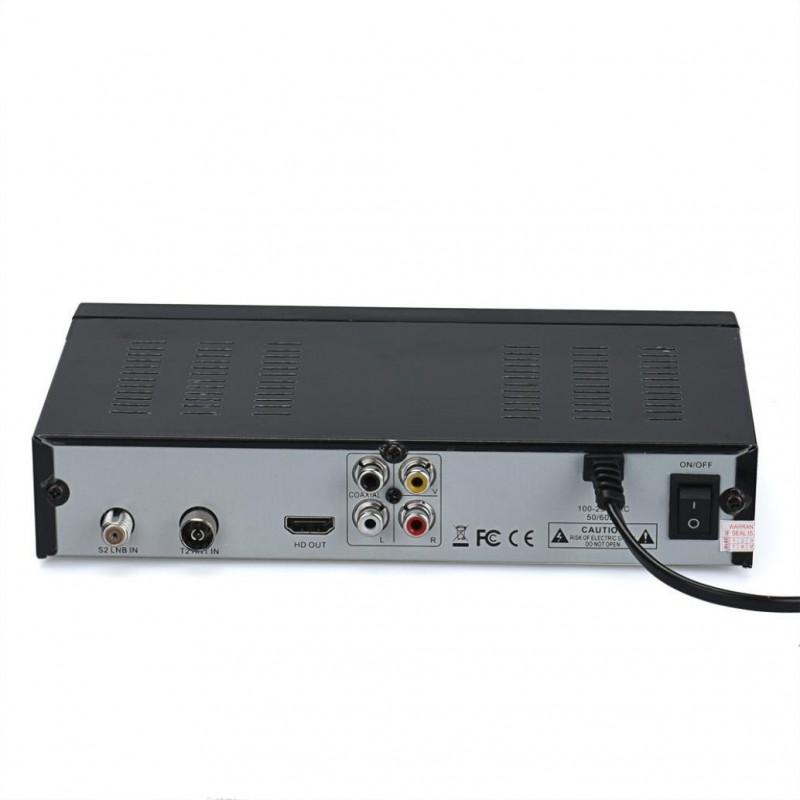

Panello posteriore S2 LNB IN connettore input IEC60169-2
T2 ANTENNA connettore input IEC-162-2(IEC Femmina)
HDMI V1.3
RCA CVBS AL AR Connector x1
Ypbpr RCAx1
Coaxial x1
Power AC100~240V 50Hz/60Hz
DVB-T2/T(EN_302755 V1.3.1/EN 300744)
Input RF Frequenza 48~866MHZ
Banda:6MHz,7MHz,8MHz
Constellation QPSK 16-QAM 64-QAM and 256-QAM
FEC 1/2, 3/5,2/3, 3/4,4/5,5/6
Guard Intervallo 1/128 1/32 1/16 19/256 1/8 19/128 1/4
FFT Mode 2K/ 8K/32K
Support Single and multiple PLPS
Input livello -83~ -5dBm
DVB-S2 frequenza 950MHz-2150MHz
Sensibilità - 10~ - 81dBm
Modalità IFFT 2k,8k
FEC Modalità 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Guard intervallo 1/4,1/8,1/16,1/32
Constellation QPSK,8PSK,16APSK
Protocolli: ETSI TR 101 190 V1.2.1
Antenna attiva 13/18V DC @ 500mA MAX,Overload Protection
•Supporta DVB-T/T2 and H.264, MPEG-4, MPEG-2 Standard
•Supporta DVB-S/S2, MPEG-2/4 H.264 Standard
•Supporta BISS KEY
•Supporta single / multiple or blind search satellite search
•DiSEqC 1.0 / 1.1 / 1.2
•Massima velocità 50 Mbit / sec
•Supporta 3D
•Sleep Timer
•Support teletext/subtitle/muti-language
•7 giorni di EPG
•AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen
•USB 2.0 for PVR,TIMESHIFT
•Risoluzione video: 480i/576i/480p/576p/720p/1080i/1080P
Video Decoder Compatibile: MPEG-4 part10/MPEG-2 ISO/IEC 13818
MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps)
MPEG-2 Main Profile# Main Level(15Mbps)
H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps)
Audio Decoder MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA
E-AC-3 (Dolby Digital Plus) decoding HE-AAC 5.1 multi-chhannel decoding
MediaCodec supportati avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc
Audio Codec supportati WMA,MP3,AAC (.wma,.mp3,m4a)
Photo Codec supportati JPEG, BMP, PNG
License
Optional DTS, Dolby Digital, Dolby Digital Plus, RM/RMVB, Divx License.
