Dettagli
| Hardware Features | ||
| Standards | IEEE 802.3, IEEE 802.3u, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP | |

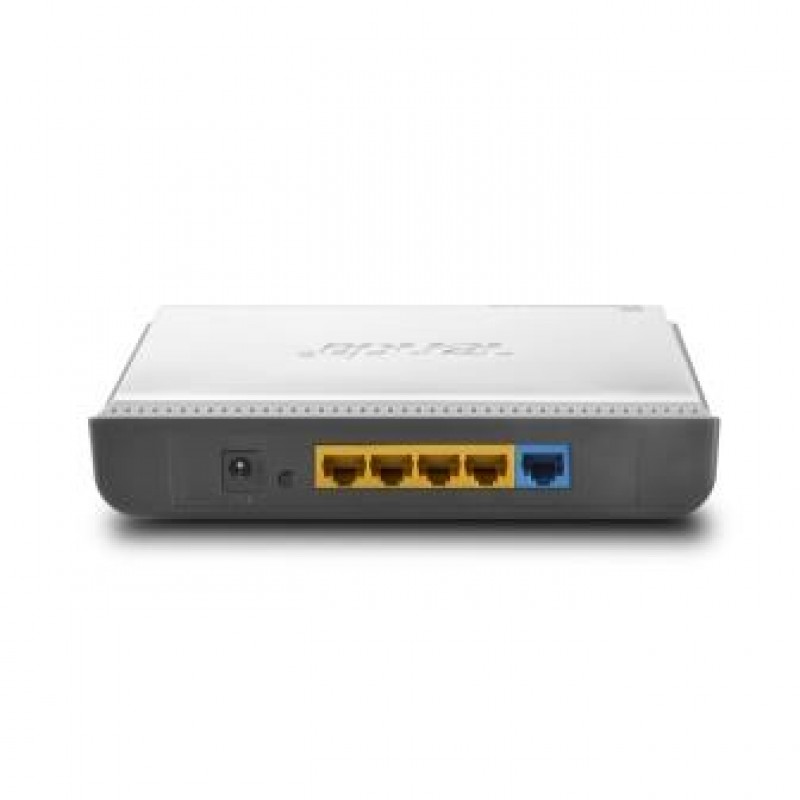

| Interface | one 10/100M auto-negotiation RJ-45 WAN port(Auto MDI/MDIX) 4 10/100M auto-negotiation RJ-45 LAN ports (Auto MDI/MDIX) |
|
| LED | Power /Reset/ SYS/ LAN1/2/3/4.WAN/ | |
| Power | 220V/55mA 50Hz AC 9V/1A AC |
|
| Dimensions (LxWxH,mm) | 139.95*90.12*31.7 | |
| Software Features | ||
| Internet Connection Type | Dynamic/static IP, PPPoE | |
| DHCP | DHCP server | |
| Security | Built-in firewall; domain name filter and MAC address filter; Internet access control |
|
| Bandwidth Control | / | |
| DDNS | DNS | |
| Others | ||
| Operating Enviroment | Operating Temperature | 0℃~40℃ |
| Storage Temperature | -40℃~70℃ | |
| Operating Humidity | 10%~90% RH no condensing | |
| Storage Humidity | 5%~90% RH no condensing | |
| Minimum System Requirement | Computer with: 200MHz CPU IE5.0 Browser 10M Network Adapter CD-ROM Drive Windows98 64M memory |
|
| Package Contents | One R502 Multifunctional Broadband Router Quick Installaiton Guide (Hard-copy) User Manual (Soft-copy) CD-ROM Quick Installaiton Guide (Soft-copy) One Power Adapter |
|
